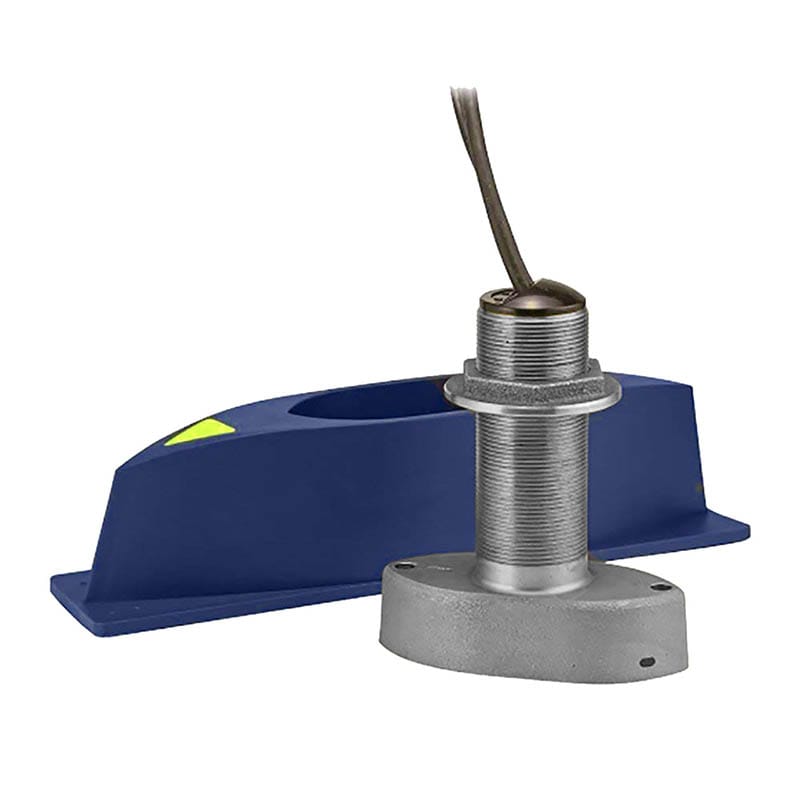

Furuno – 165T-SS54 Stainless Steel Thru-Hull Transducer for DFF3D Sounder
$1.190
The Furuno 165T-SS54 is a stainless steel thru-hull transducer designed specifically for the Furuno DFF3D multibeam sonar sounder. It provides superior durability and delivers wide 3D underwater coverage, ideal for commercial and sport fishing vessels.
The Furuno 165T-SS54 is a high-performance thru-hull transducer engineered for use with the Furuno DFF3D Multibeam Sonar System, offering exceptional 3D underwater imaging with a wide 120° port-to-starboard detection range.
Built with a stainless steel housing, the 165T-SS54 is corrosion-resistant and designed for long-term reliability in harsh marine environments. It operates at 165 kHz to provide crisp 3D sonar imagery, allowing boaters to visualize fish targets, seabed structures, and bottom contours in real time.
This transducer is the ideal solution for vessels requiring a rugged thru-hull mounting option that maintains optimal sonar performance in deep or high-speed conditions.
Key Features
-
Designed for Furuno DFF3D Multibeam Sonar Systems
-
165 kHz frequency for high-resolution 3D underwater imaging
-
Wide 120° detection beam for broad seafloor coverage
-
Stainless steel thru-hull housing for durability and corrosion resistance
-
Ideal for commercial, sport, and research vessels
-
Built-in temperature sensor for accurate environmental monitoring
-
Provides real-time 3D fish and bottom visualization
Key Technical Specifications
| Specification | Details |
|---|---|
| Brand | Furuno |
| Model | 165T-SS54 |
| MPN | 165T-SS54 |
| Condition | New |
| Transducer Type | Thru-Hull, Stainless Steel |
| Frequency | 165 kHz |
| Beam Coverage | 120° port-starboard |
| Material | Stainless Steel |
| Mounting Style | Thru-Hull |
| Temperature Sensor | Included |
| Power Output | 1 kW (nominal) |
| Depth Capability | Up to 300 m (984 ft) |
| Cable Length | 10 m (33 ft) |
| Connector Type | 7-Pin |
| Compatibility | Furuno DFF3D Multibeam Sonar, NavNet TZtouch3 |
| Dimensions (Approx.) | 160 × 100 × 100 mm |
| Weight | Approx. 4.8 kg (10.6 lbs) |
Package Includes
-
165T-SS54 Stainless Steel Thru-Hull Transducer
-
Mounting Hardware
-
Sealing Gasket and Washers
-
Installation Manual
Compatibility
Compatible with: Furuno DFF3D Multibeam Sonar System, NavNet TZtouch3 MFDs
Optional Accessories: Fairing Block, Cable Extension Kits
