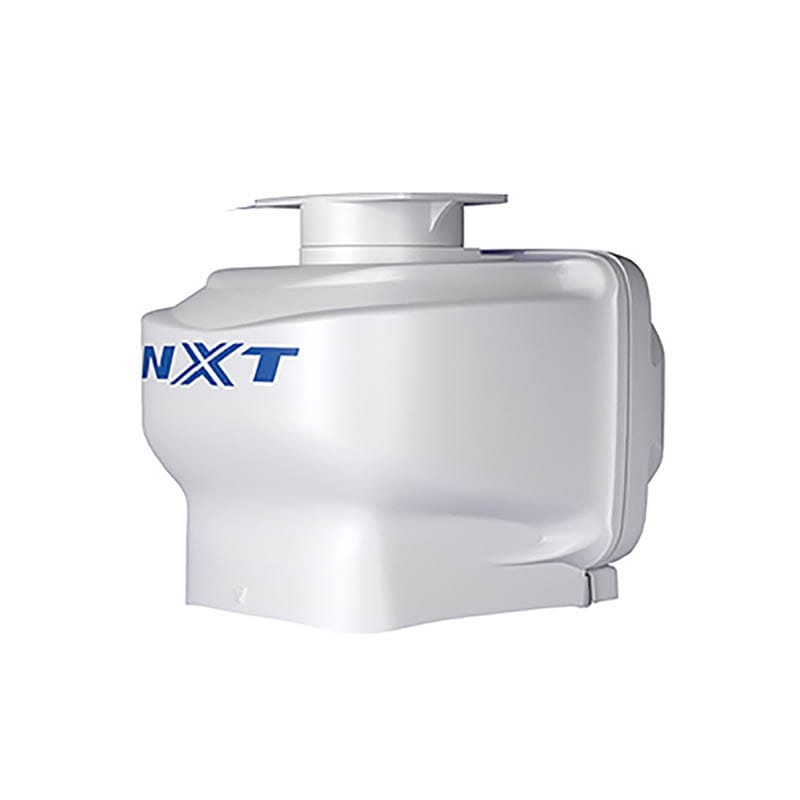

Furuno – DRS12ANXT Doppler Radar Pedestal – Less Cable and Antenna
$3.960
The Furuno DRS12ANXT is a 12W solid-state Doppler radar pedestal engineered for exceptional precision, clarity, and safety at sea.
With Target Analyzer™, Fast Target Tracking™, and RezBoost™ technologies, it delivers instant, accurate radar imagery—ideal for both commercial and leisure vessels.
The Furuno DRS12ANXT Doppler Radar Pedestal is part of Furuno’s advanced NXT Series—a new generation of solid-state Doppler radars offering superior target detection and reliability.
Utilizing solid-state transceiver technology, the DRS12ANXT eliminates magnetrons, providing maintenance-free operation, instant start-up, and longer life expectancy.
This radar features Furuno’s signature Target Analyzer™, which uses Doppler technology to instantly identify moving targets. Targets approaching your vessel are displayed in red, while those moving away are shown in green—making it easy to assess collision risks in seconds.
With Fast Target Tracking™ (ARPA), the radar can automatically track up to 100 targets simultaneously, enhancing situational awareness in busy waterways.
Engineered for integration with Furuno NavNet TZtouch, TZtouch2, and TZtouch3 systems, the DRS12ANXT provides a networked, high-definition radar solution for professional mariners and recreational captains alike.
Key Benefits
-
12W solid-state Doppler radar performance (equivalent to 12kW magnetron radar)
-
Maintenance-free, magnetron-free operation
-
Target Analyzer™ instantly identifies motion and direction via color coding
-
Fast Target Tracking™ (ARPA) for up to 100 automatic targets
-
Crystal-clear target imagery with RezBoost™ beam sharpening
-
Seamless integration with NavNet TZtouch, TZtouch2, and TZtouch3 displays
Key Features
-
12W Solid-State Doppler Radar Pedestal
-
Advanced Target Analyzer™ and RezBoost™ imaging
-
Fast Target Tracking™ (ARPA) for enhanced safety
-
Dual-range display for short and long-range targets simultaneously
-
Maintenance-free solid-state transmitter
-
Compatible with 3.5’, 4’, or 6’ open array antennas (sold separately)
-
Compact, marine-grade design for durability in harsh conditions
-
Ethernet connectivity for simple plug-and-play installation
Key Technical Specifications
| Specification | Details |
|---|---|
| Brand | Furuno |
| Model | DRS12ANXT |
| Radar Type | Solid-State Doppler Radar (NXT Series) |
| Output Power | 12W (Equivalent to 12kW Magnetron) |
| Antenna Compatibility | 3.5 ft / 4 ft / 6 ft Open Array (sold separately) |
| Beam Width | 2.3° (3.5 ft) / 1.9° (4 ft) / 1.35° (6 ft) |
| Range | 0.125 to 96 NM |
| Rotation Speed | 24/36/48 RPM (Selectable) |
| Target Tracking (ARPA) | Up to 100 Targets |
| Key Features | Target Analyzer™, Fast Target Tracking™, RezBoost™ |
| Compatible Displays | NavNet TZtouch / TZtouch2 / TZtouch3 |
| Interface | Ethernet (Furuno Network) |
| Power Supply | 12–24 V DC |
| Waterproof Rating | IP56 |
| Operating Temperature | -25°C to +55°C |
| Weight (Pedestal Only) | Approx. 18 kg |
| Cable and Antenna | Not Included (Sold Separately) |
Package Includes
-
DRS12ANXT Radar Pedestal
-
Mounting Hardware
-
User and Installation Manual
Compatibility
-
Compatible with: Furuno NavNet TZtouch / TZtouch2 / TZtouch3
-
Optional Accessories: 3.5 ft / 4 ft / 6 ft Open Array Antennas, 10 m / 15 m / 20 m Radar Cables
