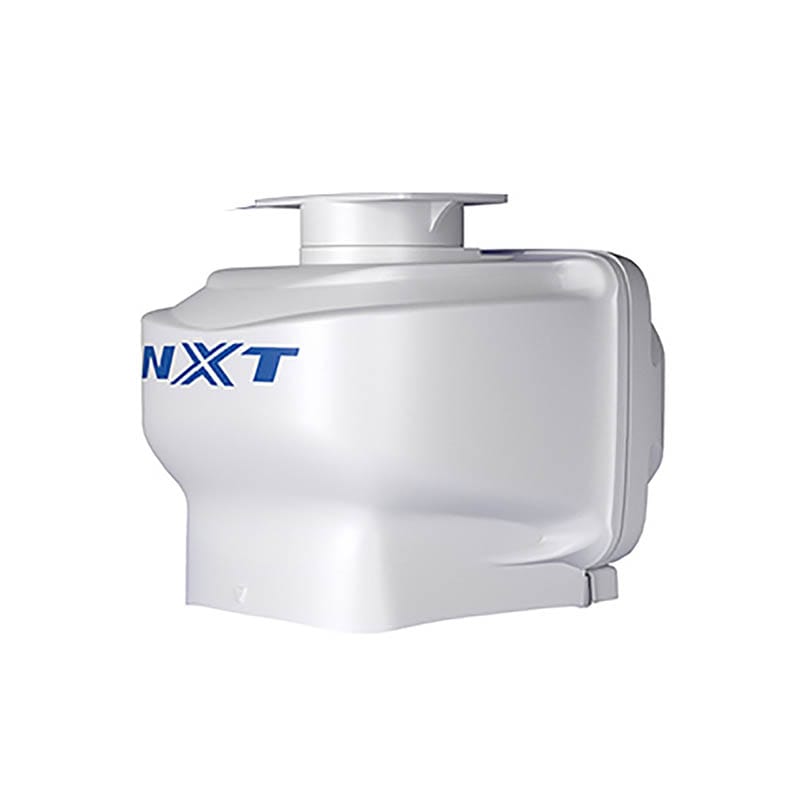

Furuno – DRS25ANXT Doppler Radar Pedestal – Less Cable and Antenna
$5.030
The Furuno DRS25ANXT is a 25W solid-state Doppler radar pedestal designed for professional and recreational vessels seeking superior situational awareness and target detection.
Featuring Target Analyzer™, Fast Target Tracking™ (ARPA), and RezBoost™ technology, it provides enhanced safety and precision in all marine environments.
The Furuno DRS25ANXT Doppler Radar Pedestal delivers exceptional radar performance through Furuno’s advanced NXT solid-state Doppler technology.
Unlike traditional magnetron-based systems, this solid-state radar offers instant-on readiness, maintenance-free operation, and long service life.
The DRS25ANXT provides superior target discrimination and clarity, identifying moving targets with color-coded Doppler detection — red for approaching targets and green for receding ones — to enhance situational awareness and safety at sea.
Integrated with Fast Target Tracking™ (ARPA), it automatically acquires and tracks up to 100 targets, helping mariners navigate safely even in congested waters.
Compact yet powerful, this pedestal seamlessly integrates with Furuno NavNet TZtouch, TZtouch2, and TZtouch3 multifunction displays for a modern, fully networked navigation solution.
Key Benefits
-
25W solid-state Doppler radar pedestal (equivalent to 25kW magnetron)
-
Maintenance-free solid-state design for long service life
-
Target Analyzer™ for instant color-coded movement detection
-
Fast Target Tracking™ (ARPA) with up to 100 tracked targets
-
High-definition target clarity with RezBoost™ beam sharpening
-
Compact design integrates with Furuno NavNet TZtouch systems
Key Features
-
25W Solid-State Doppler Radar Technology (NXT Series)
-
Advanced Target Analyzer™ and RezBoost™ imaging
-
Fast Target Tracking™ for automatic target acquisition
-
Dual-range mode for near and long-range target viewing
-
Maintenance-free, magnetron-free system
-
Seamless integration with NavNet TZtouch, TZtouch2, and TZtouch3
-
Compact, durable marine-grade construction
-
Compatible with 4’ or 6’ open array antennas (sold separately)
Key Technical Specifications
| Specification | Details |
|---|---|
| Brand | Furuno |
| Model | DRS25ANXT |
| Radar Type | Solid-State Doppler Radar (NXT Series) |
| Output Power | 25W (Equivalent to 25kW Magnetron) |
| Antenna Compatibility | 4 ft or 6 ft Open Array (sold separately) |
| Beam Width | 1.9° (with 4 ft array) / 1.35° (with 6 ft array) |
| Range | 0.125 to 96 NM |
| Rotation Speed | 24/36/48 RPM (Selectable) |
| Target Tracking (ARPA) | Up to 100 Targets |
| Features | Target Analyzer™, Fast Target Tracking™, RezBoost™ |
| Compatible Displays | NavNet TZtouch / TZtouch2 / TZtouch3 |
| Interface | Ethernet |
| Power Supply | 12–24 V DC |
| Waterproof Rating | IP56 |
| Operating Temperature | -25°C to +55°C |
| Weight (Pedestal Only) | Approx. 18 kg |
| Cable and Antenna | Not Included (Sold Separately) |
Package Includes
-
DRS25ANXT Radar Pedestal Unit
-
Mounting Hardware
-
Installation Manual
Compatibility
-
Compatible with: Furuno NavNet TZtouch, TZtouch2, TZtouch3
-
Optional Accessories: 4 ft or 6 ft open array antenna, 10/15/20 m radar cables, and power kits
