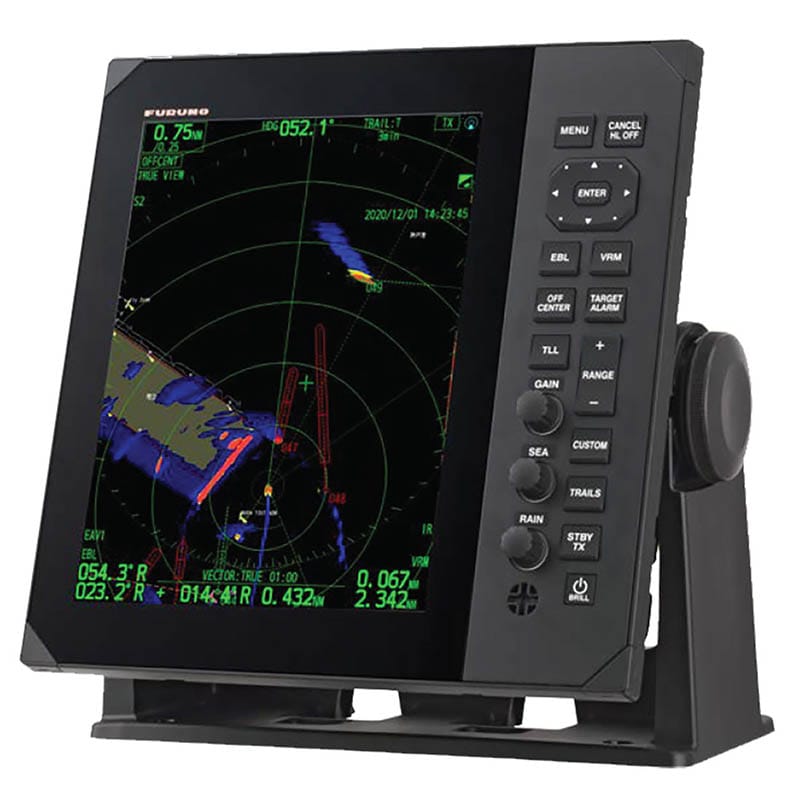

Furuno – FR-12 Color LCD Marine Radar Display – 12″
$2.570
The Furuno FR-12 is a 12-inch color LCD marine radar display designed for precise navigation and collision avoidance.
It delivers clear, high-resolution radar imaging for coastal and offshore vessels, helping mariners detect other ships, obstacles, and land features.
The FR-12 Color LCD Marine Radar Display by Furuno combines advanced radar processing with a high-resolution 12-inch LCD screen, providing detailed and easy-to-read radar images.
Ideal for both recreational and professional maritime navigation, the FR-12 enhances situational awareness by displaying targets, coastlines, and navigation markers in real-time. The unit is compact, durable, and designed to withstand harsh marine environments, including vibration, saltwater, and extreme temperatures.
Key Benefits:
-
High-resolution 12″ color LCD for clear radar imagery
-
Detects vessels, obstacles, and coastline features for safer navigation
-
Compact and rugged design suitable for marine conditions
-
Easy-to-use interface with adjustable display settings
Key Features
-
12″ color LCD radar display
-
Advanced radar signal processing for clear target detection
-
Adjustable range and gain settings for optimized visibility
-
Marine-grade design: waterproof, corrosion-resistant, and vibration-tolerant
-
Compatible with Furuno radar antennas and marine instruments
-
User-friendly menu and control interface
Key Technical Specifications
| Specification | Details |
|---|---|
| Brand | Furuno |
| Model | FR-12 |
| Display Size | 12″ diagonal LCD |
| Display Type | Color TFT |
| Radar Frequency | X-Band (9.41 GHz) |
| Pulse Power | 4 kW |
| Range | 0.125–48 nm (depending on antenna) |
| Scan Speed | 24 RPM |
| Operating Temperature | -15°C to +55°C |
| Waterproof Rating | IPX6 marine-grade |
| Power Supply | 12/24 V DC |
| Dimensions (HxWxD) | Approx. 320 × 340 × 120 mm |
| Weight | Approx. 5.2 kg |
| Connectivity | NMEA0183/NMEA2000 compatible |
Compliance & Disclaimer
-
Professional installation is recommended for optimal radar performance.
-
Radar detection depends on environmental conditions, weather, and target size.
-
Intended for marine navigation use; not suitable for general radar applications.
