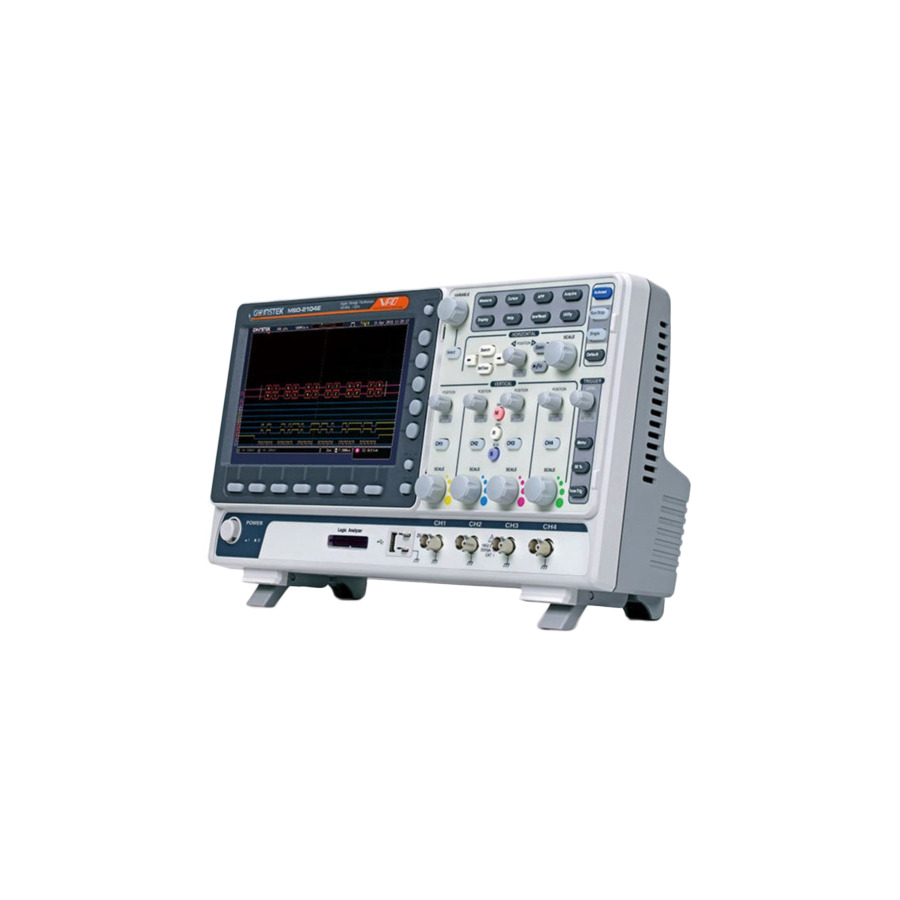

Instek MSO-2204EA: The Ultimate Mixed Signal Oscilloscope for Precision Analysis
$1.410
Instek MSO-2204EA Mixed Signal Oscilloscope: 4/16 CH, 200 MHz, 10 Mpts, 1 GS/s, AWG, MSO-2000EA Series
Instek MSO-2204EA Mixed Signal Oscilloscope, AWG, 4/16 CH, 200 MHz, 10 Mpts, 1 GS/s, MSO-2000EA Series
Product Overview:
The Instek MSO-2204EA is a versatile and powerful mixed signal oscilloscope (MSO) that combines the functionality of an oscilloscope, arbitrary waveform generator (AWG), and logic analyzer. With its 4 analog channels, 16 digital channels, 200 MHz bandwidth, 10 Mpts memory depth, and 1 GS/s sampling rate, the MSO-2204EA is ideal for a wide range of applications in electronics, telecommunications, and other industries.
Features and Specifications:
4 analog channels with 200 MHz bandwidth
16 digital channels with 100 MHz bandwidth
10 Mpts memory depth per channel
1 GS/s sampling rate
Built-in AWG with 2 channels and 100 MHz bandwidth
16-bit resolution for AWG
Advanced triggering capabilities, including edge, pulse width, and logic triggering
Comprehensive measurement functions, including time, frequency, voltage, and power
Large 10.1-inch capacitive touchscreen display
USB, LAN, and GPIB interfaces
What’s in the Box:
Instek MSO-2204EA MSO
4 passive probes
16 digital probes
AWG cable
USB cable
LAN cable
GPIB cable
Power cord
User manual
Benefits:
Versatile and powerful: The MSO-2204EA combines the functionality of an oscilloscope, AWG, and logic analyzer in a single instrument, making it ideal for a wide range of applications.
High performance: With its 200 MHz bandwidth, 10 Mpts memory depth, and 1 GS/s sampling rate, the MSO-2204EA provides excellent signal acquisition and analysis capabilities.
Easy to use: The large touchscreen display and intuitive user interface make the MSO-2204EA easy to operate, even for beginners.
* Excellent value: The MSO-2204EA offers a comprehensive set of features and capabilities at an affordable price, making it an excellent value for the money.
Value to the Customer:
The Instek MSO-2204EA is an essential tool for engineers, technicians, and students who need a versatile and powerful mixed signal oscilloscope. Its combination of features, performance, and value make it an excellent choice for a wide range of applications.
