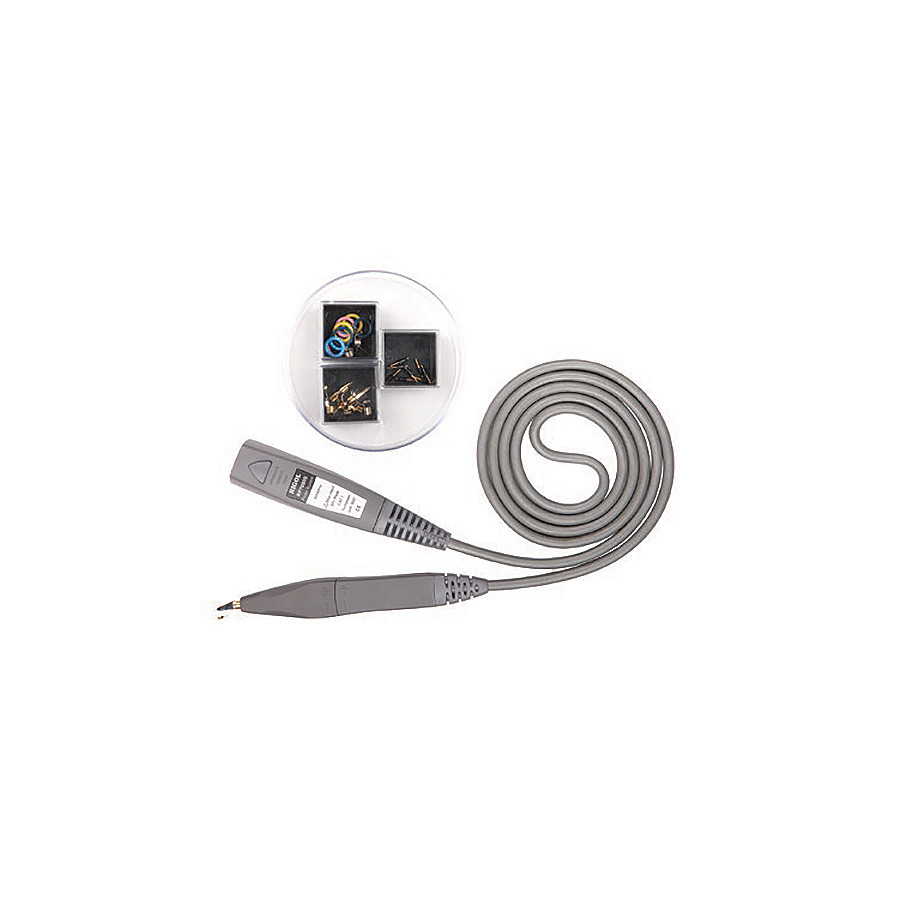

RIGOL RP7080S Active Probe: 800 MHz Precision for Oscilloscope Measurements
$681
RIGOL RP7080S Active Probe: 800 MHz bandwidth, 100 kΩ input impedance, 1 pF input capacitance, compatible with RIGOL DS6000/4000 and RP7000S Series oscilloscopes.
Features and Specifications
RIGOL RP7080S Active Probe, Single-Ended, 800 MHz, 100 k, 1 pF, for DS6000/4000, RP7000S Series
Product Overview
The RIGOL RP7080S Active Probe is a high-performance, single-ended probe designed for use with RIGOL DS6000 and DS4000 oscilloscopes, as well as RP7000S series probes. It offers a wide bandwidth of 800 MHz, a high input impedance of 100 kΩ, and a low input capacitance of 1 pF, making it ideal for a wide range of applications, including high-speed digital design, power electronics, and automotive testing.
Features
Bandwidth: 800 MHz
Input impedance: 100 kΩ
Input capacitance: 1 pF
Attenuation: 10:1
Maximum input voltage: ±40 V (DC + peak AC)
Probe tip diameter: 0.5 mm
Probe length: 1.2 m
Specifications
Electrical
Bandwidth: 800 MHz (-3 dB)
Input impedance: 100 kΩ ±2% (DC to 800 MHz)
Input capacitance: 1 pF ±0.2 pF (DC to 800 MHz)
Attenuation: 10:1 ±0.5% (DC to 800 MHz)
Maximum input voltage: ±40 V (DC + peak AC)
Mechanical
Probe tip diameter: 0.5 mm
Probe length: 1.2 m
Weight: 150 g
What’s in the Box
RIGOL RP7080S Active Probe
Ground lead
Probe tip
User manual
Benefits
High bandwidth and low input capacitance for accurate measurements on high-speed signals
High input impedance for minimal loading on the circuit under test
Compact and lightweight design for easy handling
* Compatible with a wide range of RIGOL oscilloscopes and probes
Value
The RIGOL RP7080S Active Probe is a valuable tool for engineers and technicians who need to make accurate measurements on high-speed signals. Its high performance and versatility make it an ideal choice for a wide range of applications.
