Teledyne LeCroy ZD500: Precision Differential Probe for High-Speed Signal Analysis

Features and Specifications: Teledyne LeCroy ZD500 Differential Probe, Active, 500 MHz, 1 pF, 120 kOhm, 8 V, ZD Series

Product Overview:

The Teledyne LeCroy ZD500 is an active differential probe designed for high-speed signal measurements. With a bandwidth of 500 MHz, it is ideal for capturing fast-rising and falling edges in digital and analog circuits. The probe features a low input capacitance of 1 pF and a high input resistance of 120 kOhm, ensuring minimal loading on the circuit under test.

Features:

Bandwidth: 500 MHz
Input Capacitance: 1 pF
Input Resistance: 120 kOhm
Maximum Input Voltage: 8 V
Differential and Single-Ended Measurements
Auto-Zero and Calibration
Compact and Lightweight Design

Accurately measure high-speed signals with minimal loading
Capture fast-rising and falling edges with high fidelity
Reduce measurement errors caused by probe loading
Easily switch between differential and single-ended measurements
Ensure reliable and repeatable measurements with auto-zero and calibration
Convenient and portable for use in various test environments

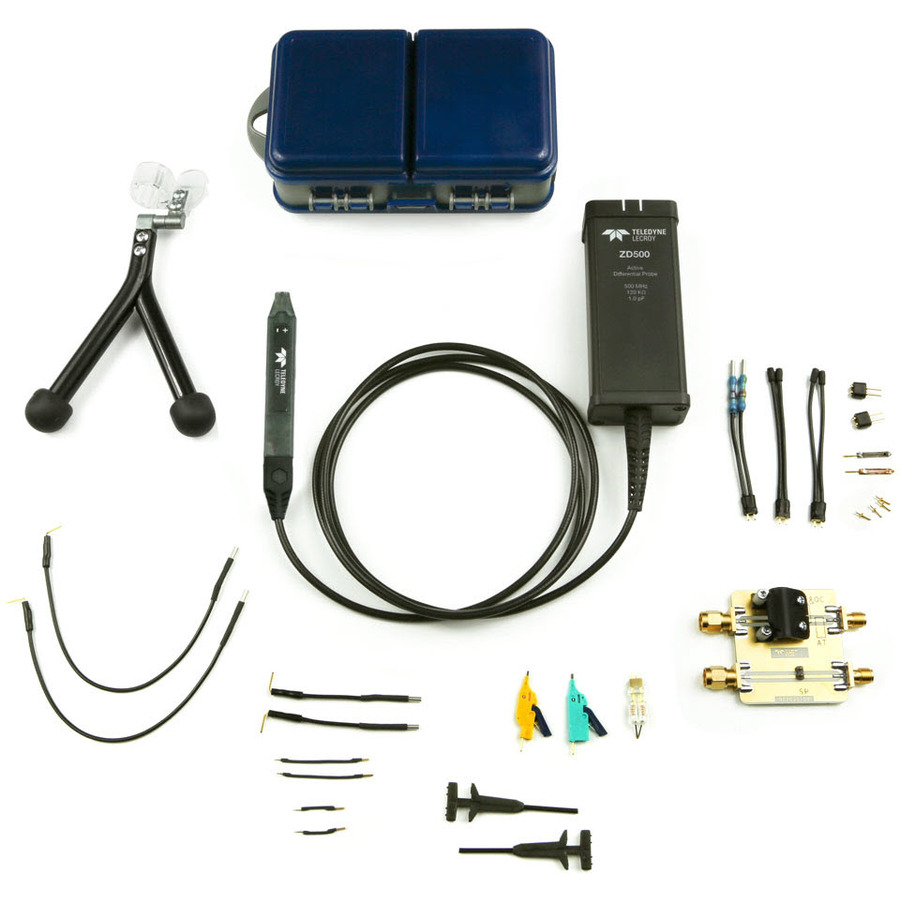

Teledyne LeCroy ZD500 Differential Probe
Ground Lead
Probe Tip
* User Manual

Value to the Customer:

The Teledyne LeCroy ZD500 Differential Probe is an essential tool for engineers and technicians who need to accurately measure high-speed signals. Its high bandwidth, low input capacitance, and high input resistance make it ideal for a wide range of applications, including digital circuit design, power electronics testing, and automotive diagnostics. The probe’s compact and lightweight design, along with its auto-zero and calibration features, ensure ease of use and reliable measurements.
